Turn cable attributes into consistent, accurate cutaway-style product images automatically.
Connect your PIM or eCommerce catalog, map the attributes you already manage (insulation color, conductor count, gauge, element type, shielding, jacketing, and more), and generate clean, standardized cable imagery at scale. No more waiting on manual illustration queues or chasing incomplete specs.
The problem
Wire and cable buyers expect clear, consistent visuals, but traditional image creation is slow, expensive, and hard to keep in sync with reality. When attributes change (materials, colors, shielding, conductor count), images drift out of date. Teams end up with a mix of photos, outdated drawings, and placeholder art that makes it harder to sell complex products online.
The solution: Agentic image generation built for wire and cable
Our tool automatically generates cable images directly from structured product attributes. It’s designed specifically for wire and cable catalogs, where variations are high and accuracy matters.
Instead of designing each image manually, you define the rules once and let the system render accurate outputs across thousands of SKUs. The result is a consistent visual system that scales with your catalog.
What it generates
Consistent visuals across your catalog
Generate a standardized set of images per SKU, such as:

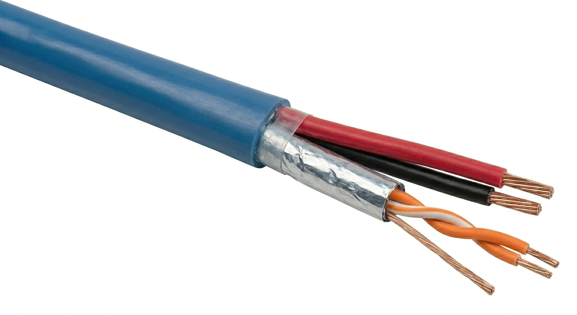

- Cutaway / cross-section style images driven by conductor count, gauge, insulation, jacket, shielding, fillers, and separators
- Variant-consistent colorways based on your insulation and jacket color attributes
- Element-level representations for twisted pairs, triads, multi-conductor, coax, hybrid constructions, etc.
- Repeatable layouts that look coherent across product families and brands
How it works
1) Connect your catalog
We use our standard connectors to integrate with your PIM or eCommerce platform to pull product records and attributes. The system can run as an automated pipeline (new/updated SKUs trigger new images) or as a batch process.
2) Normalize attribute data
Cable image generation only works when attributes are structured and consistent. We include an onboarding service to normalize your data so the renderer has reliable inputs.
3) Generate images at scale
Once mapped, images are generated automatically per SKU using your chosen output rules, styles, and templates.
4) Publish where you sell
Push images back to your PIM and downstream channels (eCommerce, marketplaces, portals, PDFs, and sales tools) so every channel stays current.
Onboarding service
Get your attributes ready for automation
Most cable catalogs contain “nearly right” data: mixed units, inconsistent naming, overloaded fields, and non-standard values. Our onboarding service ensures your attribute data becomes a dependable foundation for image generation.
Common work includes:
- Standardizing attribute names and allowed values
- Normalizing units (AWG vs mm², OD/ID, insulation/jacket thickness)
- Resolving variation rules (families, bundles, constructions)
- Establishing data requirements for each image type
- Validating outputs against representative SKUs
Why it matters
Faster, cheaper, and more consistent than manual illustration
- Scale: Generate thousands of SKU images without linear design costs
- Speed: New products and changes publish quickly
- Accuracy: Images reflect current product data, not stale drawings
- Consistency: A unified style across brands, series, and variants
- Conversion: Better visuals make complex cable configurations easier to buy
Who it’s for
- Cable manufacturers with large or frequently changing catalogs
- Distributors that need consistent imagery across suppliers
- Teams modernizing PIM and eCommerce workflows
- Product data owners who want a repeatable “data to asset” pipeline
Integrations
Built to plug into your stack
Connect to your PIM or commerce platform to read attributes and write back finished images. The integration can be lightweight (file export/import) or deeper (API-driven sync), depending on your specific needs.
